Actually it is a project that I have considered for some time: A new sawbench.
I made a sawbench something like 8 years ago, and it is one of the most used pieces of equipment I have in the shop. A thing that I have thought would be useful was if I could use a sawbench for my dowel plates. That way I didn't have to mess around on the top of the workbench, to make sure that a hole for one of the dogs was straight below the hole in the dowel plate.
Also the stretchers for the legs would be a perfect little test subject for my new chain mortiser. And with Asger and Gustav in the shop, I didn't have any room for building the staircase which meant that it was perfectly OK in my mind to start another project.
The first bench I made was made exactly to the measurements outlined in Woodworking Magazine.
This time I decided that it might not cause the world economy to collapse, if I decided to make a few alterations to the design.
So I made the top thicker, wider and a little bit longer than on the original. I stayed with the same height, and also the same angle of splay on the legs.
This time I used larch for legs and stretchers, and a piece of Sitka spruce for the top that I milled long time ago.
The tenons of the stretchers are drawbored and wedged. The top is secured with dowels that I tried to drawbore as well. I did that so that the dowels will hold the top to close to the notch in the top of the legs.
Below the top there are a couple of reinforcements glued and screwed to the legs.

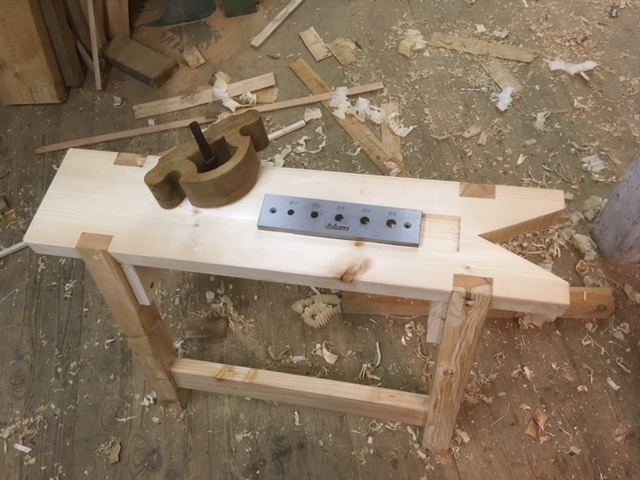

I used a chisel and a router plane to make a recess for the dowel plates. I chose not to make it the same depth as the plates, because it is easier to remove the plates when there is a bit protruding through the top like it is now.
A small piece of elm was cut and planed to fit into the recess while not in use for the dowel plates.
Asger working on a gambrel roofed church.
Hot glue gun, strips of wood and some imagination is all it takes.
Making a recess.
Blum dowel plate.
